    Hydraulic Cone Crusher Equipment Simple Operation High Output

    Ask Lasest Price
    Brand Name : Huaji
    Price : Negotiable
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

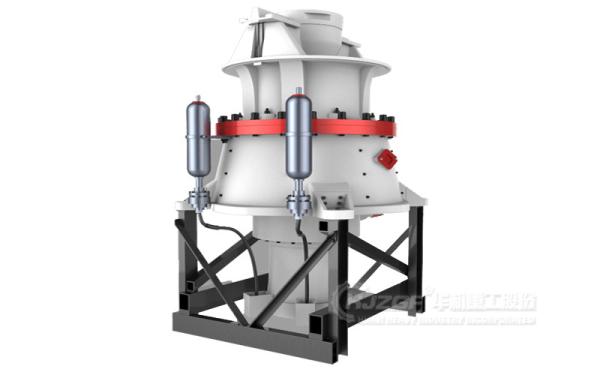

    Hydraulic Cone Crusher Equipment Simple Operation High Output

    Hydraulic Cone Crusher product description

    GP series single-cylinder hydraulic cone crusher is a new type of high-efficiency crusher independently researched, developed and designed by our company on the basis of more than twenty years of crushing experience and extensive absorption of domestic and foreign advanced crusher technology. The cone crusher integrates mechanical, hydraulic, electrical and intelligent control technologies, with reasonable equipment structure, low operation and maintenance costs, fully automatic control, constant discharge opening, and large eccentric distance suitable for medium and fine crushing of various types of ores. It has the advantages of simple operation, high output, low maintenance, wide range of application and high efficiency.

    Hydraulic Cone Crusher working principle

    When GP Series Single Cylinder Hydraulic Cone Crusher is in operation, the motor drives the drive shaft to rotate through the belt pulley and triangle belt, and the drive shaft drives the eccentric sleeve to rotate through the large and small bevel gears, and the movable cone rotates through the main shaft to make the rotary oscillation under the action of the eccentric sleeve, so that the movable cone and the fixed cone are close to the rolling mortar wall and far away from it, and the materials are continuously crushed by the squeezing and impacting in the crushing chamber between the rolling mortar wall and the crusher, and the crushed materials are discharged from the lower part of the crusher.

    Hydraulic Cone Crusher Technical Parameters

    numberCavityfeed opening
    (mm)
    Maximum feed size
    (mm)
    Minimum Discharge(mm)Maximum discharge(mm)Motor power
    (Kw)
    strokestrokestrokestrokestrokestroke
    GP1001622162290
    A15012012153937
    B13010510113331
    C10085793330
    D4032563129
    GP22018251825160
    A22018018223530
    B15012015193530
    C80609123530
    D4032683530
    GP30025322532250
    A23019020254540
    B15012517204540
    C806010134035
    D4032684035
    GP500253240253240315
    A230180222630504540
    B150125192226484338
    C10080121416403530
    D504081012302520
    Quality Hydraulic Cone Crusher Equipment Simple Operation High Output for sale
