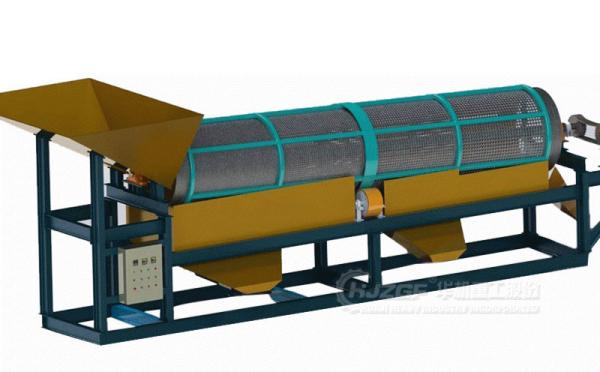

Trommel product description
Tumbler screen is a new generation of screening equipment designed
and produced by combining the advantages of various vibrating
screens. Overcome a variety of vibrating screen in the screening of
wet materials when the screen mesh sticky blocking problem, greatly
improving the output and reliability of the tumbler screen,
suitable for screening coal, coal research stone, coke, quicklime
and other wet and easy to clog materials, can be widely used in
power plants, coking plants, building materials, metallurgy,
chemical industry, mining and other industries.
Characteristics of the equipment
1,Adopting rolling conveying principle and reliable anti-clogging
technology, small friction coefficient, light abrasion, no clogging
of screen holes.
2,The drum support adopts the whole through-axis structure, smooth
running, no vibration, low noise.
3,The drum body adopts effective sealing structure, less dust, high
environmental performance.
4,Special wear-resistant screen mesh, long service life, low
maintenance cost.
Trommel working principle
Trommel Technical Parameters
Model | production capacity (t/h) | power (KW) | Drum diameter (mm) | Length of sieve cylinder (mm) | Sub-sieve size (mm) | Feed size (mm) |
GT1015 | 50 | 3.0 | 1000 | 1500 | 1-100 | ≤300 |
GT1020 | 100 | 4.0 | 1000 | 2000 | 1-100 | ≤300 |
GT1225 | 160 | 5.5 | 1200 | 2500 | 1-100 | ≤300 |
GT1530 | 250 | 7.5 | 1500 | 3000 | 1-100 | ≤300 |
GT1545 | 350 | 11 | 1500 | 4500 | 1-100 | ≤400 |
GT1848 | 450 | 15 | 1800 | 4800 | 1-100 | ≤400 |
GT2055 | 600 | 22 | 2000 | 5500 | 1-100 | ≤400 |
GT2265 | 800 | 30 | 2200 | 6500 | 1-100 | ≤400 |
