    Industrial Scrap Crusher Equipment Low Energy Consumption Energy Saving

    Scrap Crusher product description

    This waste steel crushing line is suitable for crushing waste light steel thin materials, such as waste car body (removing engine, gearbox, tires, etc.); tinplate class (color steel tile, iron drum, cans, etc.); home appliance products (removing motor, compressor, shafts, etc.); bicycles, trucks fences, and similar wastes; cans (paint drums, oil drums, chemical drums, etc.); other waste steel (such as the density of the packages of less than 0.6, the thickness of ≤ 6mm thickness, steel plates, steel profiles, steel structural parts), etc.
    With reasonable design, reliable performance, high recovery rate of finished products, high automation program, safety and environmental protection, and can remove the coating film on the surface of the scrap steel, impurities, and improve the bulk density of the finished product, etc. When the steel mill re-melting products, the energy consumption is low, the output is high, and the comprehensive benefits are obvious. It can be widely applied to scrap recycling companies, steel mills and other industries.

    Scrap Crusher working principle

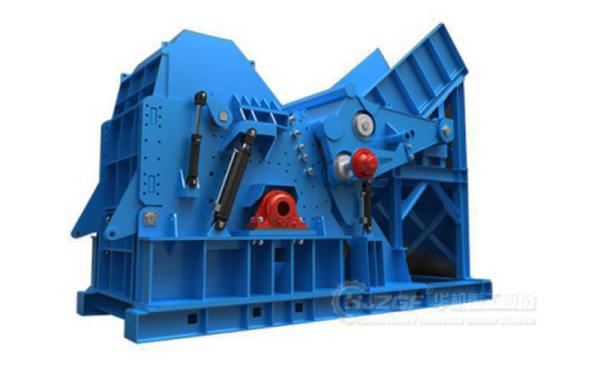

    Scrap steel crusher consists of frame, liner, screen, rotor, hammerhead, universal shaft, electric motor, electric control system, electric motor drives the rotor and hammerhead for high-speed circular motion, the bottom of the configuration of the crushing screen plate, the side of the configuration of the liner, from the inlet into the crushing chamber of the material, the first by the high-speed rotation of the hammerhead, and then by the lining plate rebound to the hammer, so that the material in the crushing chamber back and forth to be struck, and collide with each other in the process of movement, to achieve the screen size from the bottom of the crusher after the discharge port.

    Scrap Crusher Technical Parameters

    ModelInlet size(mm)Host power
    (KW)
    production capacity
    (t/h)
    PCG-2008002001-5
    PCG-40012004005-10
    PCG-750200075015-20
    PCG-90090020-30
    PCG-12002600120025-40
    PCG-1600160040-50
    PCG-2000200050-60
    PCG-2500250060-80
    PCG-30002800300080-100
    PCG-45004500100-150
